Domestic Sewage Treatment Plant
Domestic Sewage Treatment Plant
BioDisc® Domestic Sewage Treatment Plant - The domestic BioDisc® is engineered to treat wastewater to the highest level of standards and offers one of the lowest lifetime costs compared to other treatment processes.
• Utilises Rotating Biological Contactor technology.
• Low running costs.
• Low level visibility with a lockable childproof cover – safe for children and pets.
• For NIEA, BA-BC models deliver 95% pollution removal, whilst the BioDisc+P achieves 97.8% for BOD removal.
• 10 year warranty options available when purchased with a service and maintenance plan.

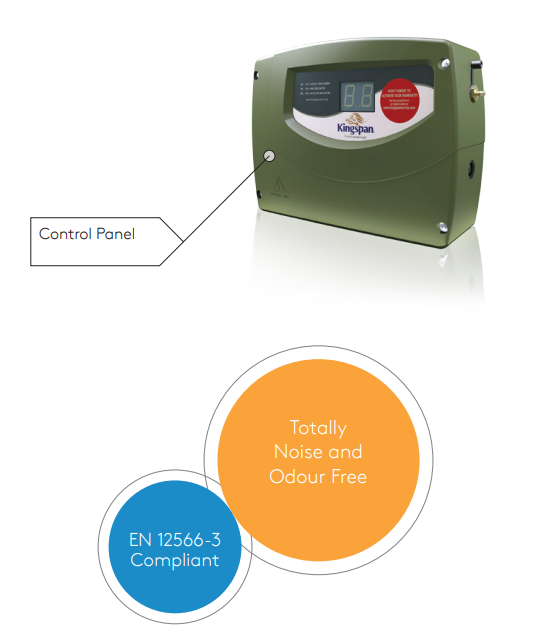

• Supplied with a control panel and alarm.
• Managed Flow System.
• Totally silent in operation.
• The most stable process in the market.
• Controls the discharge volume
Applications:
The domestic BioDisc® BA–BC range is suitable for a variety of applications including:
The Rotational Biological Contactor - The RBC is central to the operation of each BioDisc®. It supports a biologically active film or biomass onto which aerobic micro-organisms, naturally found in sewage, become established. Natural breakdown of sewage can then occur as described below.
The RBC comprises banks of vacuum formed polypropylene media supported by a steel shaft. This is slowly rotated by a low energy consumption electric motor and drive assembly.

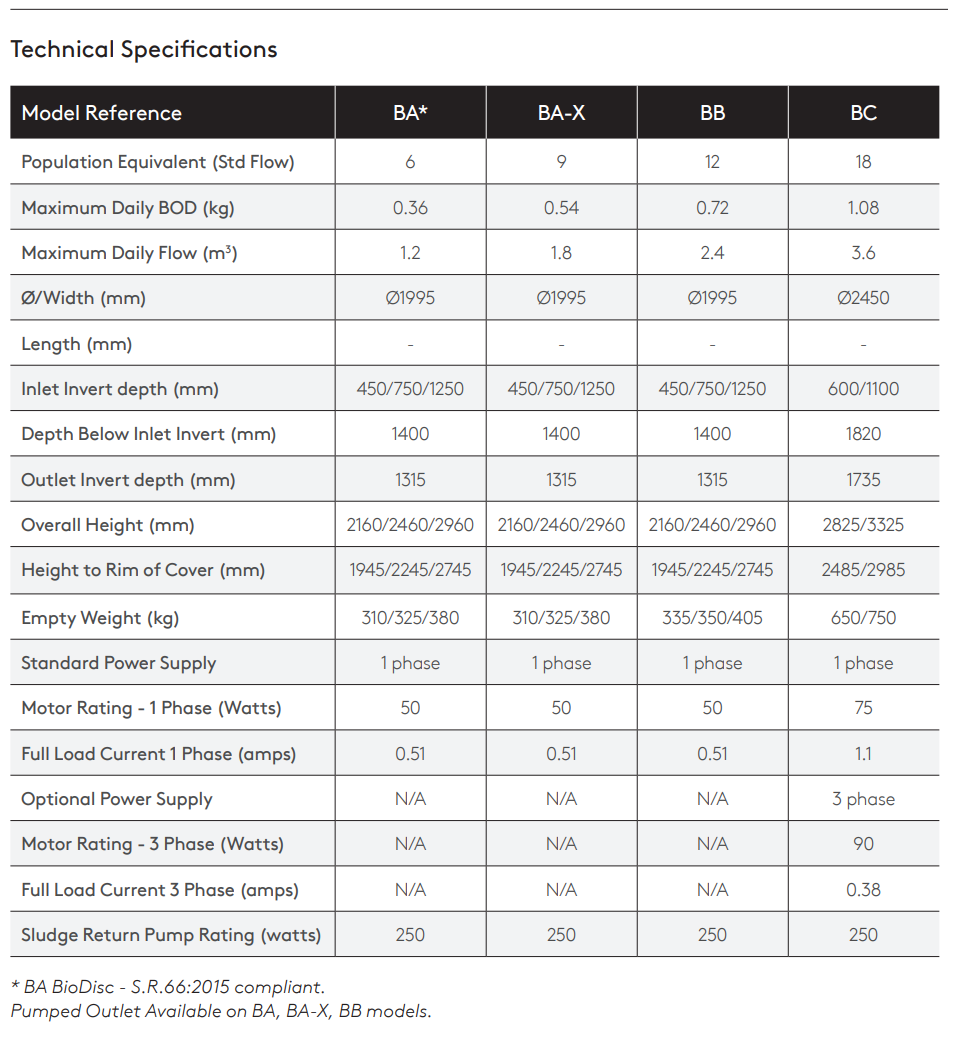

Our robust BioDisc® models cater for properties housing between 4-18 people. The premium BioDisc® sewage treatment system is available in four sizes for all types of domestic applications.
For single house applications we offer the BA and BA-X models and, for multiple homes, the Klargester BB and BC BioDisc® models offer the perfect solution.

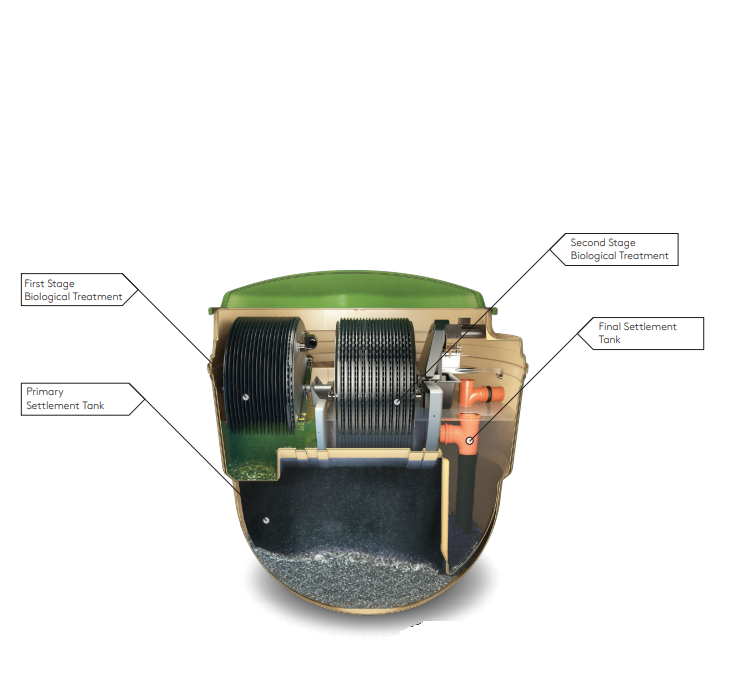

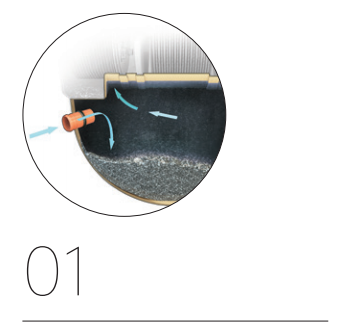

Wastewater and sewage flows into the primary settlement tank where the large solids are retained for future removal.

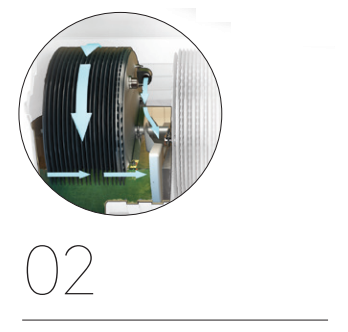

The liquor and fine solids then flow into the Biological Treatment Zone 1 where the first stage of treatment occurs.

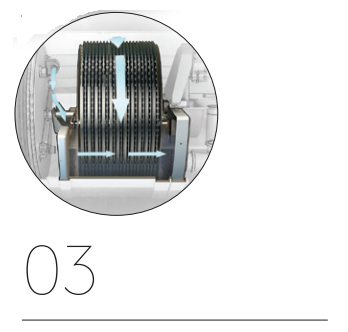

The liquor is then fed forward at a controlled rate into Biological Treatment Zone 2 for further cleaning.

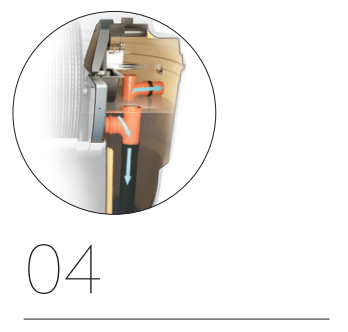

The clean liquid passes into the final settlement tank where it can be discharged to ground or watercourse.
